PD6000-7R0 New

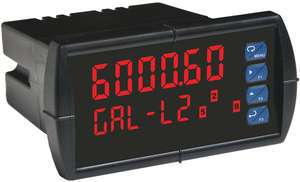

PD6000-7R0 12-24Vdc powered, advanced 1/8 DIN Dual line 6-digit process control meter - no options

The dual line display provides for units display and simplifies setting up the meter.

• Supports Input types 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V
• NEMA 4X, IP65 Front
• Universal 85-265 VAC or 12/24 VDC Input Power
• Large Dual-Line 6-Digit Sunlight Readable Display, 15.25mm[0.60"] & 11.68mm[0.46"]
• Isolated 24 VDC @ 200 mA Transmitter Power Supply
• Programmable Display & Function Keys
• Math Functions for Flow & Round Horizontal Tanks
• 32-Point, Square Root, or Exponential Linearization
• Multi-Pump Alternation Control
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• RS-232, RS-422/485 Serial Communication Options
• -40 to 65°C Operating Temperature Range

Specifications

General

• Display: Main display: 0.60" (15 mm) high, second display: 0.46" (12 mm) high. Both displays are 6 digits (-99999 to 999999), red LEDs with leading zero blanking.
• Display Intensity: Eight intensity levels
• Display Update Rate: 5/second (200 ms)
• Overrange: Display flashes 999999
• Underrange: Display flashes -99999
• Front Panel: NEMA 4X, IP65
• Programming Methods: Four front panel buttons, PC based linearization utility, cloning using Copy function, or via digital inputs
• Noise filter: Programmable from 2 to 199 (0 will disable filter)
• Filter Bypass: Programmable from 0.1 to 99.9% of calibrated span
• Recalibration: Calibrated at the factory. Recalibration is recommended at least every 12 months
• Max/Min Display: Max (peak) / min (valley) readings reached by the process are stored until reset by the user or until power to the meter is turned off
• Password: Three programmable passwords restrict modification of programmed settings. Pass 1: Allows use of the F1–F3 function keys. Pass 2: Allows use of the F1–F3 function keys and changing the set/reset points. Pass 3: Restricts all programming and F1–F3 keys
Note: Digital inputs are not password protected
• Non-Volatile Memory: All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost
• Power Options: 85-265 VAC 50/60 Hz, 90-265 VDC 20 W max or jumper selectable 12/24 VDC ±10%, 15W max.
• Fuse: Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse
• Isolated Transmitter Power Supply: 5, 10, or 24 VDC selectable by internal jumper. 24 VDC ± 10% supply rated @ 200 mA max (100 mA max for 12/24 VDC powered models). The 5 or 10 VDC supplies rated @ 50 mA max
• Normal Mode Rejection: Greater than 60 dB at 50/60 Hz
• Isolation: 4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply
• Environmental: Operating temperature range: -40 to 65°C. Storage temperature range: -40 to 85°C. Relative humidity: 0 to 90% non-condensing

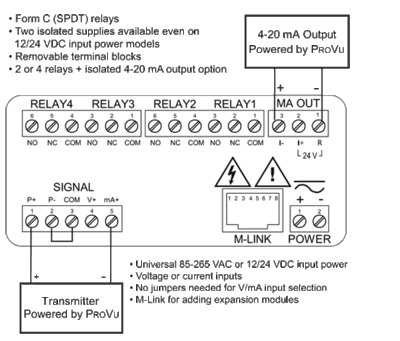

• Connections: Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters
• Enclosure: 1/8 DIN, high impact plastic, UL 94V-0, color: black
• Mounting: 1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm). Two panel mounting bracket assemblies are provided
• Tightening Torque: Screw terminal connectors: 5 lb-in (0.56 Nm)

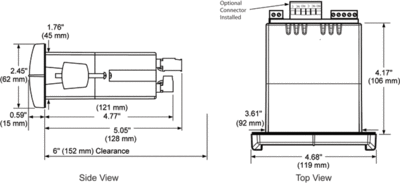

• Overall Dimensions: 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)
• Weight: 9.5 oz (269 g)
• UL File Number: UL & c-UL Listed. E160849; 508 Industrial Control Equipment
• Warranty: 3 years parts & labor

Process Input

• Inputs: Field selectable: 0-20, 4-20 mA, ±10 VDC (0-5, 1-5, 0-10 V)
• Accuracy: ±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span
• Math Function: Linear, square root, programmable exponent, or round horizontal tank volume calculation
• Multi-Point Linearization: 2 to 32 points
• Programmable exponent:1.0001 to 2.9999
• Low-Flow Cutoff: 0-999999 (0 disables cutoff function)
• Temperature Drift: 0.005% of calibrated span/°C max from 0 to 65°C ambient, 0.01% of calibrated span/°C max from -40 to 0°C ambient
• Decimal Point:Up to five decimal places or none: d.ddddd, dd.dddd, ddd.ddd, dddd.dd, ddddd.d, or dddddd
• Calibration Range: Minimum span: 0.15 mA or 0.10 V An Error message will appear if input 1 and input 2 signals are too close together.
• Input Impedance: Voltage ranges: greater than 1 MΩ. Currentranges: 50 - 100 Ω (depending on resettable fuse impedance)
• Input Overload: Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed

Relays

• Rating: 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP @ 125/250 VAC for inductive loads
• Noise Suppression: Noise suppression is recommended for each relay contact switching inductive loads
• Deadband: 0-100% of span, user programmable
• High or Low Alarm: User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turned off)
• Relay Operation: Automatic (non-latching), latching (requires manual acknowledge), sampling (based on time), and pump alternation control (2 to 8 relays)
• Relay Reset: User selectable via front panel buttons or digital inputs
1. Automatic reset only (non-latching), when input passes the reset point
2. Automatic + manual reset at any time (non-latching)
3. Manual reset only, at any time (latching)
4. Manual reset only after alarm condition has cleared
Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset
• Time Delay: 0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay
• Fail-Safe Operation:Programmable and independent for each relay
Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state
• Auto Initialization: When power is applied to the meter, relays will reflect the state of the input to the meter

Isolated 4-20 mA Transmitter Output

• Output Source: Process variable (PV), max, min, or set points 1-8
• Scaling Range: 1.000 to 23.000 mA for any display range
• Calibration: Factory calibrated: 4.000 to 20.000 = 4-20 mA output
• Accuracy: ± 0.1% FS ± 0.004 mA
• Temperature Drift: 0.005% of calibrated span/°C max from 0 to 65°C ambient, 0.01% of calibrated span/°C max from -40 to 0°C ambient
Note: Analog output drift is separate from input drift
• Isolated Transmitter Power Supply: Terminals I+ & R: 24 VDC ± 10% @ 40 mA maximum, may be used to power the 4-20 mA output or other devices. Present on both AC & DC powered units.
• External Loop Power Supply: 35 VDC maximum
• Output Loop Resistance:
