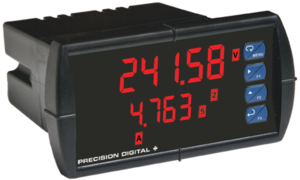

PD6400-6R2 New

PD6400 High Voltage and One High Current Input with 2 relay option

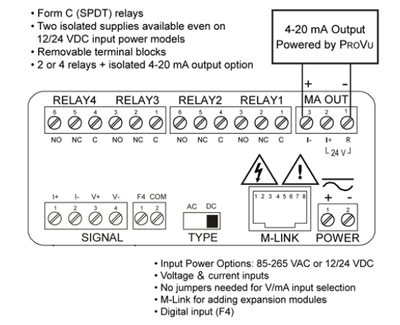

• One High Voltage and One High Current Input
• Multiplication for Apparent Power Calculation
• 0-300 VAC or VDC Voltage Input
• 0-5 AAC or ADC Current Input
• NEMA 4X, IP65 Front
• Input Power Options: 85-265 VAC or 12/24 VDC
• Large Dual-Line 6-Digit Display, 0.60" & 0.46"
• Optional SunBright Display Models for Outdoor Applications
• Programmable Displays & Function Keys
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, & RS-485 Serial Comm Options
• Modbus RTU Communication Protocol Standard
• Onboard USB and MeterView^® Pro Programming Software
