PD6300-6R7 New

Model: PD6300
Brand: Precision Digital
Precision Digital
$630.00 USD

PD6300-6R7 Flow Rate / Totalizers Meter Pulse Input, 4 Relays & 4-20mA out, 85-265Vac powered

Perfect for Flow Applications

The PD6300 is s 1/8 DIN flow,rate and totalizing meter for pulse output transmitters. They can display flow rate and flow total at the same time, provide excitation power for the flowmeter. Displays total, grand total, or non-resettable total on up to nine digits.

Inputs Details

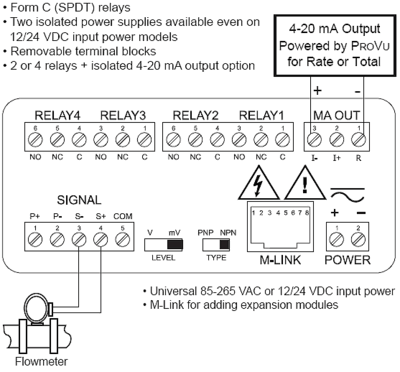

  • Pulse, Open Collector, NPN, PNP, TTL, Switch
  • Contact, Sine Wave (Coil), Square Wave Inputs
  • 5, 10 or 24 VDC Flowmeter Power Supply
  • Gate Function for Rate Display of Slow Pulse Rates
  • K-Factor, Internal Scaling, or External Calibration
  • 4-20 mA Output Option Converts the Pulse Input toan Isolated 4-20 mA Output


  • NEMA 4X, IP65 Front
  • Universal 85-265 VAC or 12/24 VDC Input Power

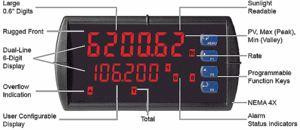

  • Large Dual-Line 6-Digit Display, 0.60" & 0.46"
  • Programmable Displays & Function Keys
  • Sunlight Readable Display
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • External 4-Relay & Digital I/O Expansion Modules
  • RS-232, RS-422/485 Serial Communication Options
  • -40 to 65C Operating Temperature Range

Flow, rate and Totalizing Features

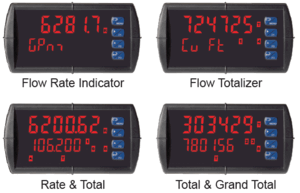

  • Display Rate & Total at the Same Time
  • Rate in Units per Second, Minute, Hour, or Day
  • Total, Grand Total or Non-Resettable Grand Total
  • Password Protection for Total Reset
  • 9-Digit Totalizer with Total Overflow Feature
  • Any Relay for Rate or Total
  • 4-20 mA Output for Rate or Total
  • Sampling Relay
  • Total Stored in Non-Volatile Memory

Click here for more Product Information
