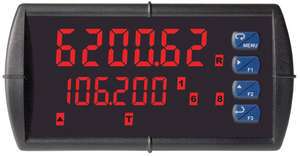

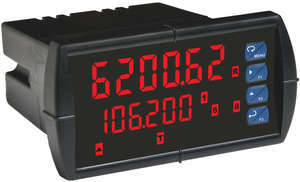

PD6200-7R5 Flow Rate / Totalizer Meter Analog Input, 2-relays & 4-20mA out 12/24Vdc powered
Perfect for Flow Applications
The PD6200 is s 1/8 DIN flow,rate and totalizing meter for analog output transmitters. They can display flow rate and flow total at the same time, provide excitation power for the flowmeter. Displays total, grand total, or non-resettable total on up to nine digits.

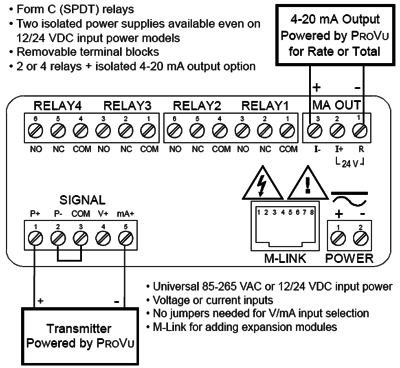

Inputs Details
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
- Isolated 24 VDC @ 200 mA Transmitter Power Supply
- Open Channel Flow with Programmable Exponent
- Square Root Extraction
- 32-Point Linearization
Description
- NEMA 4X, IP65 Front
- Universal 85-265 VAC or 12/24 VDC Input Power

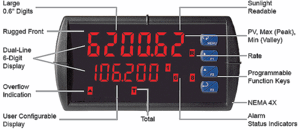

- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- Programmable Displays & Function Keys
- Sunlight Readable Display
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- RS-232, RS-422/485 Serial Communication Options
- -40 to 65°C Operating Temperature Range

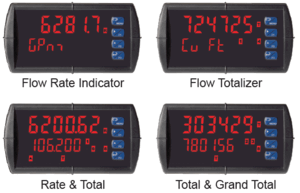

Flow, rate and Totalizing Features
- Display Rate & Total at the Same Time
- Rate in Units per Second, Minute, Hour, or Day
- Total, Grand Total or Non-Resettable Grand Total
- Password Protection for Total Reset
- 9-Digit Totalizer with Total Overflow Feature
- Any Relay for Rate or Total
- 4-20 mA Output for Rate or Total
- Sampling Relay
- Total Stored in Non-Volatile Memory
